Pay with KMA

Make a Pay is an easy and quick way to make a payment. One of the solution is Pay with KMA; a seamless purchasing goods & services via your mobile application deep-linked to Krungsri Mobile Application (KMA) through API standard system. Merchant application can call directly to the KMA app. For example, shopping cart app can call the KMA app to the payment page directly. It’s easy for shopper to make a payment with a few steps.

Use Case for Pay with KMA

Customers can easily make payment via KMA from merchant's application. Krungsri API provided backend service to support customer shopping journey on merchant's application with smoothly payment on mobile application .

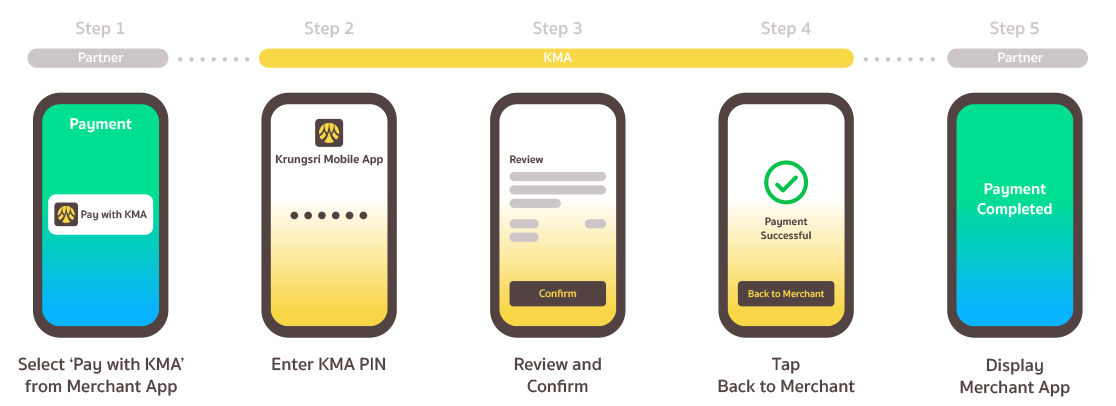

High level steps:
   1) Once customer is ready to pay for the goods then select "Pay with KMA" from merchant's application.
   2) Enter PIN in KMA
   3) Verify payment information then confirm the payment
   4) Call back to merchant's application

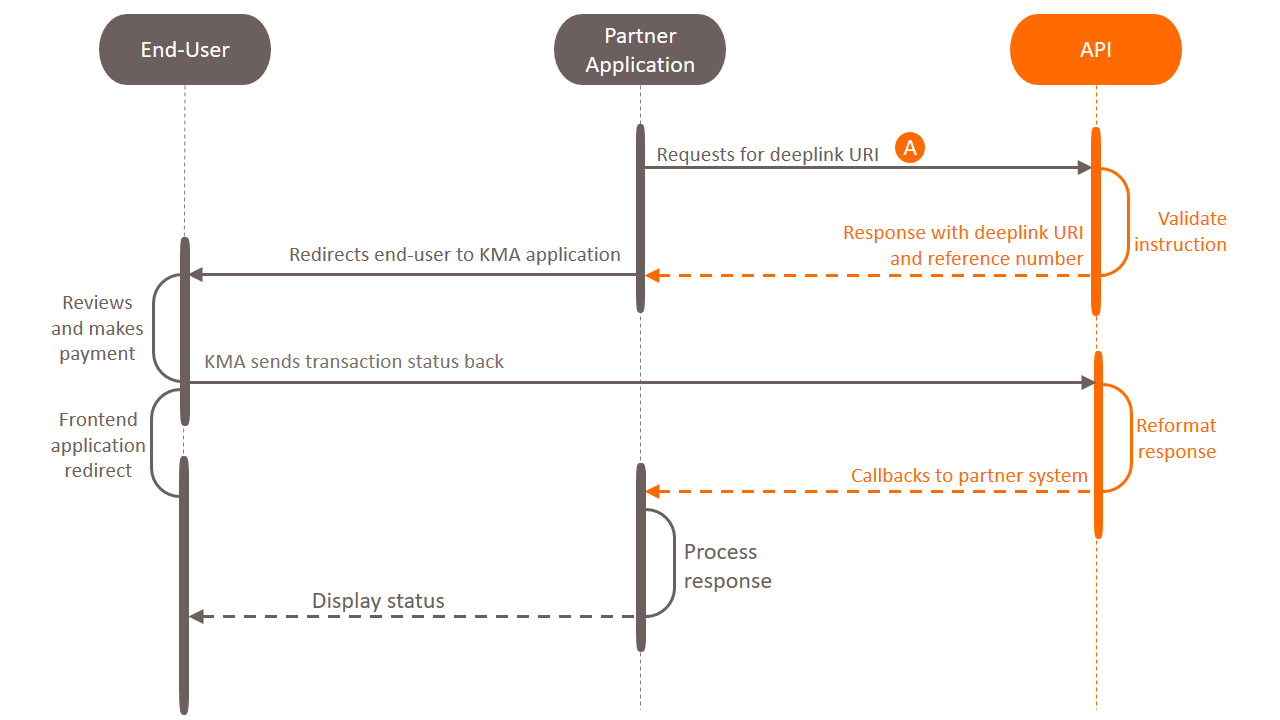

  • Partner Application sends ’Deeplink generation’ instruction information to validate with Krungsri (A)
  • Krungsri API responses Deeplink URL and Reference number
  • Partner Application redirects end-user to KMA application as response Deeplink URL
  • End-user reviews and confirms payment (paid, cancelled etc.)
  • Front-end switchs back to partner application screen, KMA sends transaction status back.
  • Krungsri API callbacks to partner application that can be provided by partner's application system for Krungsri to callback with transaction status update(push mode)……… READ MORE…….
    • If partner's application does not provide callback service, partner can use ‘Deeplink transaction inquiry’ to retrieve transaction status (pull mode) for partner application to proceed with the status
    • Partner application process information and display at frontend interface
• Pay with KMA - Payment Status Inquiry

    Partner application can inquire for transaction initiated from their merchant to Krungsri to check for transaction status or retrieve transaction information.

• Pay with KMA - Cancel payment transaction initiated

    In case exception occurs after the successful transaction initiation, partner application can always call Cancellation API to cancel the initiated transaction


• Related API

View API Catalogs



Seq No. API Name API Endpoints
APay with KMA - Initiate payment transactionPOST /rest/api/v1/payments/deeplink/transactions
BPay with KMA - Payment Status InquiryPOST /rest/api/v1/payments/deeplink/transactionStatus/inquiry
CPay with KMA - Cancel payment transaction initiatedPOST /rest/api/v1/payments/deeplink/transactions/cancellation

Technical Details

Partner provides one endpoint for Krungsri API to callback to your system, sample of request message can be as following

Request parameter

processingStatus Indicates the processing status of a payment transaction “code”
paymentAccountNumber A payment account in masked format. Applicable only if the processingStatus is FNLD
transactionReference Unique transaction reference to identify the transaction
slipImage Slip image in base64 format. Applicable only if the processingStatus is FNLD
paymentDateTime Date and time at which all processing conditions for execution of the payment are met and payment transaction is accepted. Applicable only if the processingStatus is FNLD. Format is YYYY-MM-DDThh:mm:ss.sss in Thailand local date and time (UTC/GMT +7)
paymentReferenceIdentification A payment reference identification generated by Krungsri. Use as a reference for a payment transaction. Applicable only if the processingStatus is FNLD
paymentChannel Specifies the payment channel to be used to process the payment instruction. Applicable only if the processingStatus is FNLD
         Sample request
{
  "processingStatus": "ACPT",
  "paymentAccountNumber": "xxx-x-x0055-x",
  "transactionReference": "77f5373d-5656-48d4-afe4-80df8006346d",
  "slipImage": " iVBORw0KGgoAAAANSUhEUgAAACEAAAA3CAYA...(shorten string for document purpose)...BlrYcnACwAAAABJRU5ErkJggg==",
  "paymentDateTime": "2020-02-20T00:00:00.000",
  "paymentReferenceIdentification": "BAY23910338",
  "paymentChannel": "BAY_KMA"
}
